7 Different Types Of Kitchen Layouts To Choose

Types Of Kitchen Layout

When choosing your dream home, and getting onto the major decisions about its interior, one area that you might find hard to crack easily is the Kitchen layout.

While there are many to different types of kitchen layouts choose from, be it the Island, L-Shape, U-Shape, Open, Parallel, Straight, or Galley, choosing between them can be hard. However, what can help is to know and understand the multiple kinds of options that you can choose from and give your kitchen space its ultimate look.

Types Of Kitchen Spaces - Work Triangle And Its Principals

A work triangle was devised back in the 1920s as the first measure of efficiency in a residential kitchen. This triangle in a kitchen space creates a clear path between the food preparation space (the stovetop), the cleaning space (the kitchen sink), and the food storage area (the refrigerator).

The principles of the kitchen work triangle are:

  • The length of each triangle must be between 1.2 and 2.7m
  • The combined length of three legs must be between 4m and 7.9m
  • There shouldn’t be any appliances or cabinets that might intersect either of the triangle’s leg
  • No major traffic is to be allowed through the triangle
  • For maximum usability and efficiency, the entry doors must be at least 812mm wide
  • The entry door shouldn’t interfere with the safe operation of either appliance and must not interfere with one another
  • The length of the work aisles must be at least 1060mm for the single cook kitchens and about 1220mm for multiple cook kitchens
  • The walkways must ideally be at least 915mm wide
  • The seating area must be located in spaces with no traffic behind the seat with a clear walkway of 915mm allowed from the counter or table edge behind it
  • There must be limited seating of a minimum of 610mm wide for every person. You must also allow a 460mm leg clearance of the table at 760mm high with 380mm clearance of the kitchen counter (914mm high), and 305mm at the bar counter (1066mm high)
  • In case there is only one sink, you must locate the same next to or across from the fridge and stove top
  • The sink must be flanked with a minimum of 610mm of the landing area with 460mm on either side
  • The dishwasher must be placed within 900mm from a sink
  • There must be a landing space of at least 380mm beside the handle side of the fridge or more than 1200mm on the opposite side of the fridge
  • The cooking surface must have a landing area of 300mm and 380mm on either side
  • There must be a minimum of 600mm between the non-combustible and the cooking surface above it
  • Make sure to have a ventilation system right above the cooking appliances
  • Install a fire extinguisher near the kitchen’s exit
  • The microwave ovens must be placed 75mm below shoulder height as the ideal height
  • Have a landing area of at least 380mm above, below, or next to the microwave
  • Provide a landing area of at least 380mm beside the oven or one no more than 1200mm in the opposite direction of the oven
  • The landing space for adjacent appliances must be combined with the greater requirement with the addition of 300mm
  • To accommodate all storage, work areas, and landing space, there must be an ideal countertop of 4000mm with 600mm depth with 380mm height
  • Each work surface should have good lighting

But, what are the options to choose from when it comes to choosing a kitchen layout?

To help you, we have curated this article of the top best kitchen layout picks to choose from before you finalise your master kitchen interior plan! So, sit back and continue reading and choose wisely.

Different Types Of Kitchen Layout - Your All-In-One Cheat Sheet

Listed below are the different types of kitchen layouts that you might want to choose from this year!

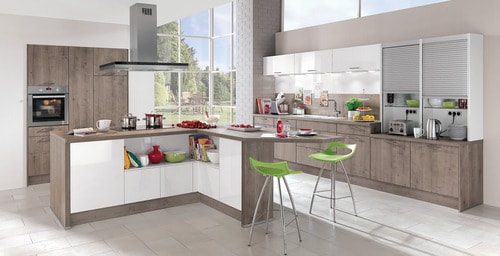

1) Modular Island Kitchen Design - Types Of Kitchen Layout

Modular Island Kitchen Design - Types Of Kitchen Layout

Large kitchen spaces are the norms and trends in urban households that can be achieved with the island modular kitchen designs. Spread over the entire kitchen area, these modular island-shaped kitchen counters accommodate all functionalities in a sophisticated manner, allowing a variety of comfort options to the guest and host, and are roomy for kids to use.

This type of kitchen design provides ample space, making the kitchen a multifunctional area, and also provides additional storage for better ventilation.

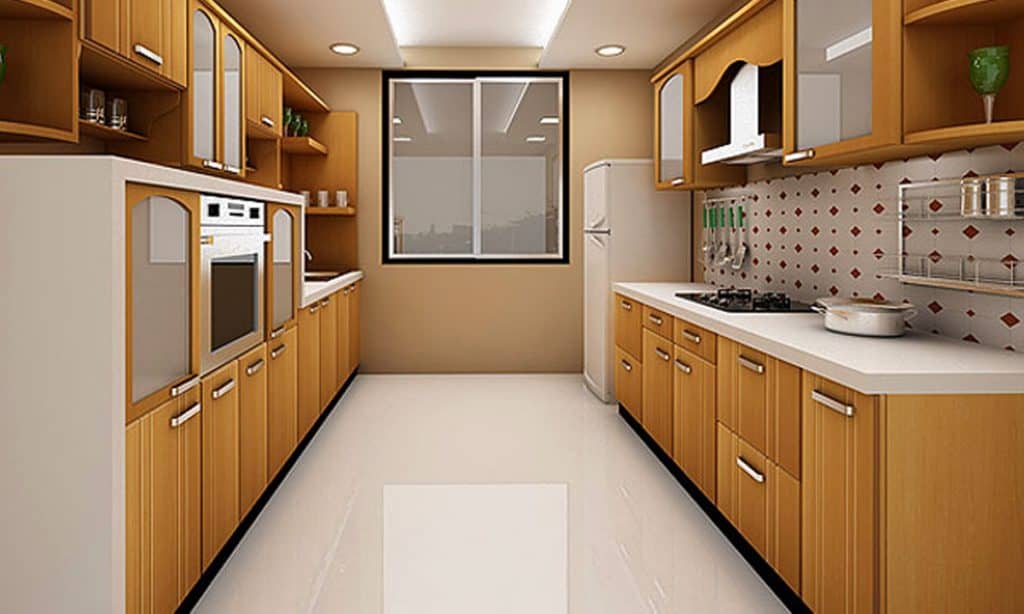

2) Parallel Kitchen Modular Design - Types Of Kitchen Layout

Parallel Kitchen Modular Design - Types Of Kitchen Layout

Parallel modular kitchen designs help your kitchen to not be claustrophobically hidden but let you show off with much more comfort and pride with enough space for movement.

It lets the light flow much more steadily through the windows and doors which helps make the shape of the kitchen and the “cooking time” delightful for all chefs at home.

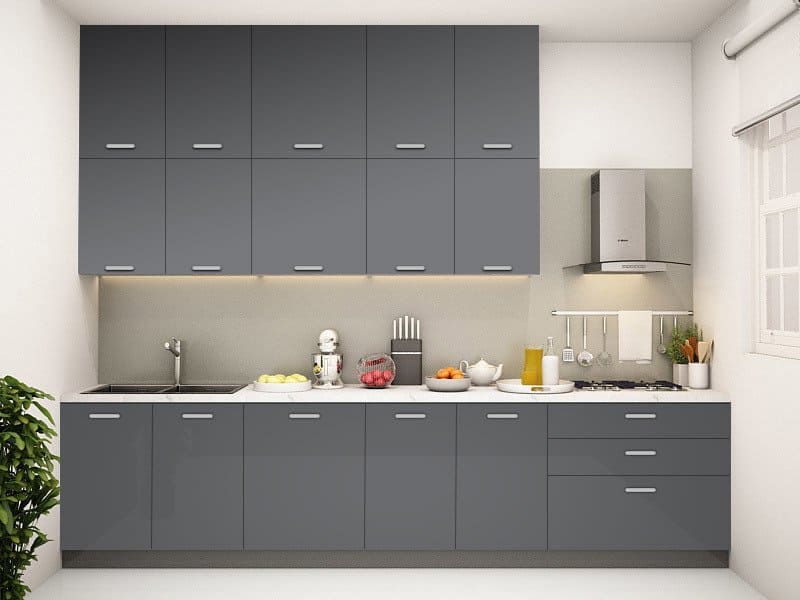

3) Modular Straight Kitchen Design - Types Of Kitchen Layout

Modular Straight Kitchen Design - Types Of Kitchen Layout

Modular Straight Kitchen Designs, although old-fashioned, are classy too! This is what makes the design super convenient and easy to use and cook in.

This kitchen space ensures the cooks with enough space for all accessories and functional elements with the layout sticking to its basics. This kind is surely a must-have, especially for minimalistic, cook and dine hassle-free preferred spaces.

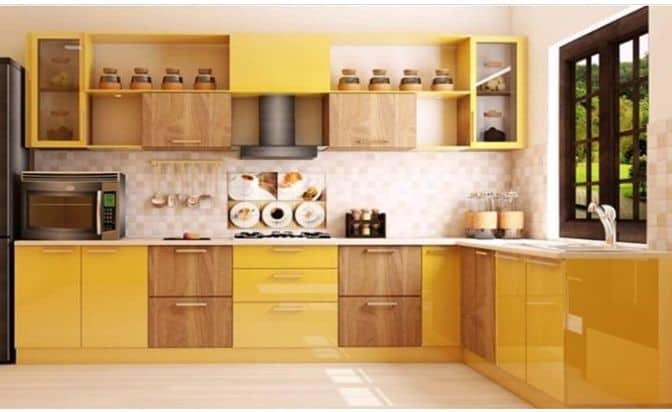

4) Modular L Shaped Kitchen Design Layout - Types Of Kitchen Layout

Modular L Shaped Kitchen Design Layout - Types Of Kitchen Layout

These modular L-shaped kitchen designs are best for small to medium kitchen spaces. If you prefer this kind of kitchen space, you would need to thoughtfully plan and keep the space organized or free of clutter.

Kitchen spaces that are L-shaped help amplify creativity, are ergonomically appropriate, and also facilitate a sensible preparation, cooking, and cleaning work triangle. These are best matched with all sorts of layout kinds that require an excellent floor plan, the kitchen should be built at the corner of two walls forming a perpendicular angle and a part of the wall should be twice the length of the other.

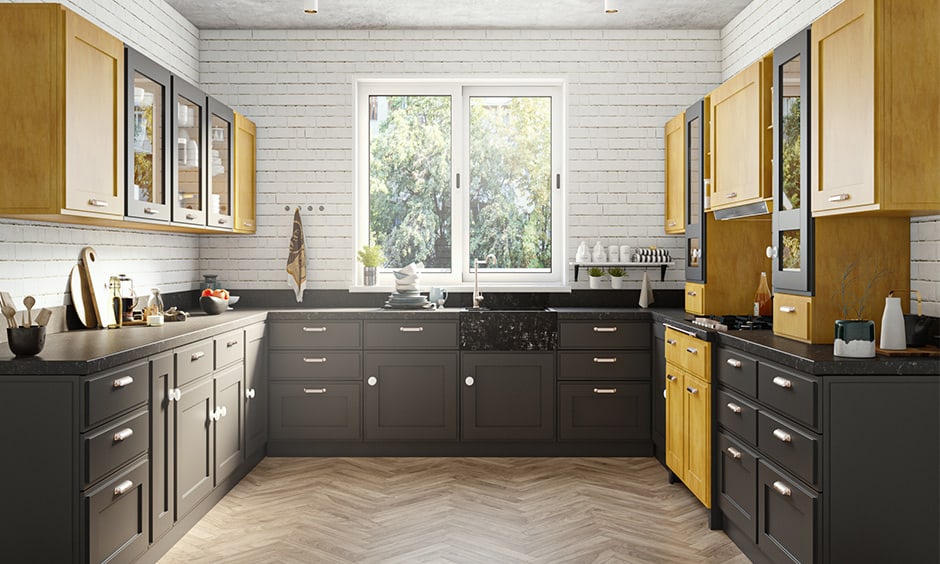

5) Modular U Shaped Kitchen Design - Types Of Kitchen Layout

Modular U Shaped Kitchen Design - Types Of Kitchen Layout

This U-shaped modular kitchen design features an arrangement of 3 walls lined with cabinets and appliances. These kinds are efficient with free floor space and are mostly practical with a lot of space for storing appliances, as compared to a U-shaped modular kitchen.

A U-shaped modular kitchen is a great fit for the concept of a ‘Golden Triangle’ that naturally fits with a U-shaped modular kitchen such as the fridge, stoves, and sink – all placed within an arm’s reach. Practical use of kitchen space that one might find difficult to see in other galley kitchens. Adding to this, the biggest advantage of a U-shaped modular kitchen is the safety it comes with since it eliminates the traffic and/or disrupts the flow of the kitchen.

6) Open Modular Kitchen Design - Types Of Kitchen Layout

Open Modular Kitchen Design - Types Of Kitchen Layout

Open modular kitchen designs are popular among Indian homes as it perfectly blends with the rest of the house. These add volume, especially for modest-sized homes, make you feel one with the house and not isolated, and also provide you with free space.

The added benefit of these modular designs is their shape which allows you to converse with guests, take part in family activities, and make the smallest space spacious.

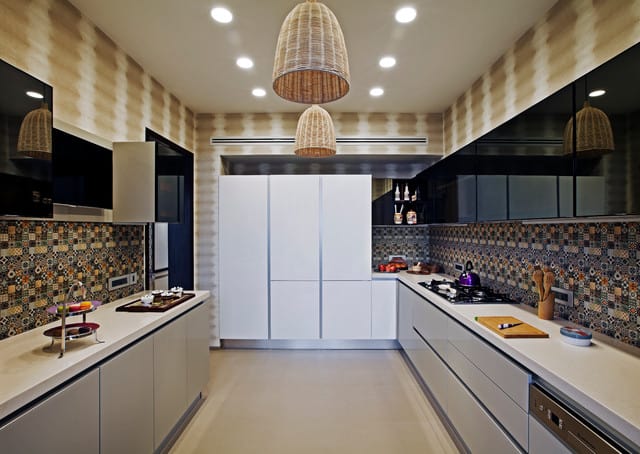

7) Galley Modular Kitchen Design - Types Of Kitchen Layout

Galley Modular Kitchen Design - Types Of Kitchen Layout

These are basically two narrow rows of cabinets that are set in a way of facing each other with a walkway that is narrow. Modular Galley Kitchen Design’s layout is best fitted with all kitchen styles and enhances the efficiency and safety while cooking. These kinds of kitchen shapes also help fit several cabinets, house doors, or walkways at either end of the run. You can also add tall cabinets to run along the wall to help store all major appliances.

We’d recommend keeping the base cabinets in a darker material and the upper in a lighter color to help connect more towards the ceiling. This setting reduces the “hallway” feel and creates a cleaner and organizes space.

The Bottom Line

We hope the blog above has helped you narrow down a few options that might help you boost your kitchen space. Nevertheless, to add on, in order to make it a better purchase, you might also want to ask yourself a few essential questions. These could be – What do you like about the current kitchen? Is there something you’d wish to change in the current setting? What are your preferences? Is there a color that you’d wish to focus on? What are your requirements?

Once you have these questions sorted, and jotted on a paper or elsewhere, you must head back to the list and understand the setting better and make an informed decision.

Happy searching!

7 Different Types Of Kitchen Layouts To Choose In 2022 FAQ:

1) Where does a U-shaped kitchen fit best?

A U-shaped modular kitchen is a great fit for the concept of a ‘Golden Triangle’ that naturally fits with a U-shaped modular kitchen such as the fridge, stoves, and sink - all placed within an arm’s reach. Practical use of kitchen space that one might find difficult to see in other galley kitchens. Adding to this, the biggest advantage of a U-shaped modular kitchen is the safety it comes with since it eliminates the traffic and/or disrupts the flow of the kitchen.

2) What consists of a galley kitchen design?

In a galley kitchen design, there are basically two narrow rows of cabinets that are set in a way of facing each other with a narrow walkway. Modular Galley Kitchen Design’s layout is best fitted with all kitchen styles and enhances the safety and efficiency while cooking. These kinds of kitchen shapes also help fit several cabinets, house doors, or walkways at either end of the run. You can also add tall cabinets to run along the wall to help store all major appliances.

3) What is a work triangle in a kitchen setup?

A work triangle was devised back in the 1920s as the first measure of efficiency in a residential kitchen. This triangle in a kitchen space creates a clear path between the food preparation space (the stovetop), the cleaning space (the kitchen sink), and the food storage area (the refrigerator).

4) What are the principles of a kitchen work triangle?

The principles of the kitchen work triangle are:
  • The length of each triangle must be between 1.2 and 2.7m
  • The combined length of three legs must be between 4m and 7.9m
  • There shouldn’t be any appliances or cabinets that might intersect either of the triangle’s leg
  • No major traffic is to be allowed through the triangle
  • For maximum usability and efficiency, the entry doors must be at least 812mm wide
  • The entry door shouldn’t interfere with the safe operation of either appliance and must not interfere with one another
  • The length of the work aisles must be at least 1060mm for the single cook kitchens and about 1220mm for multiple cook kitchens
  • The walkways must ideally be at least 915mm wide
  • The seating area must be located in spaces with no traffic behind the seat with a clear walkway of 915mm allowed from the counter or table edge behind it
  • There must be limited seating of a minimum of 610mm wide for every person. You must also allow a 460mm leg clearance of the table at 760mm high with 380mm clearance of the kitchen counter (914mm high), and 305mm at the bar counter (1066mm high)
  • In case there is only one sink, you must locate the same next to or across from the fridge and stove top
  • The sink must be flanked with a minimum of 610mm of the landing area with 460mm on either side
  • The dishwasher must be placed within 900mm from a sink
  • There must be a landing space of at least 380mm beside the handle side of the fridge or more than 1200mm on the opposite side of the fridge
  • The cooking surface must have a landing area of 300mm and 380mm on either side
  • There must be a minimum of 600mm between the non-combustible and the cooking surface above it
  • Make sure to have a ventilation system right above the cooking appliances
  • Install a fire extinguisher near the kitchen’s exit
  • The microwave ovens must be placed 75mm below shoulder height as the ideal height
  • Have a landing area of at least 380mm above, below, or next to the microwave
  • Provide a landing area of at least 380mm beside the oven or one no more than 1200mm in the opposite direction of the oven
  • The landing space for adjacent appliances must be combined with the greater requirement with the addition of 300mm
  • To accommodate all storage, work areas, and landing space, there must be an ideal countertop of 4000mm with 600mm depth with 380mm height
  • Each work surface should have good lighting
