14 Different Types Of Partition Walls Based On Materials

different types of partition walls

Different types of Partition walls are an integral part of interior designs. It adds character to the whole space. With advancing technology and design, partition wall materials and  partition wall types have expanded over the years. Incorporating these advancements have also contributed in adding versatility in the function of the partition walls.

 Partition walls are basically of two categories, one that are capable of taking weight and provide support, known as the load bearing partition wall. These walls are an essential part of the structural element and connected from the roof to the foundation. These walls are designed perpendicular to the floor support and in multiple floor designs, placed one over the other in adjacent floors.

in While the second category of partition floors are non-load bearing, which is not capable of taking weight. It mainly serves the purpose of bringing separation in a space. These walls are not a part of the integral structure and are mostly incorporated to divide space.

These walls come in different modifiable forms today based on the material it is made of.

Let’s take a look at different types of partition wall materials available today in the market :

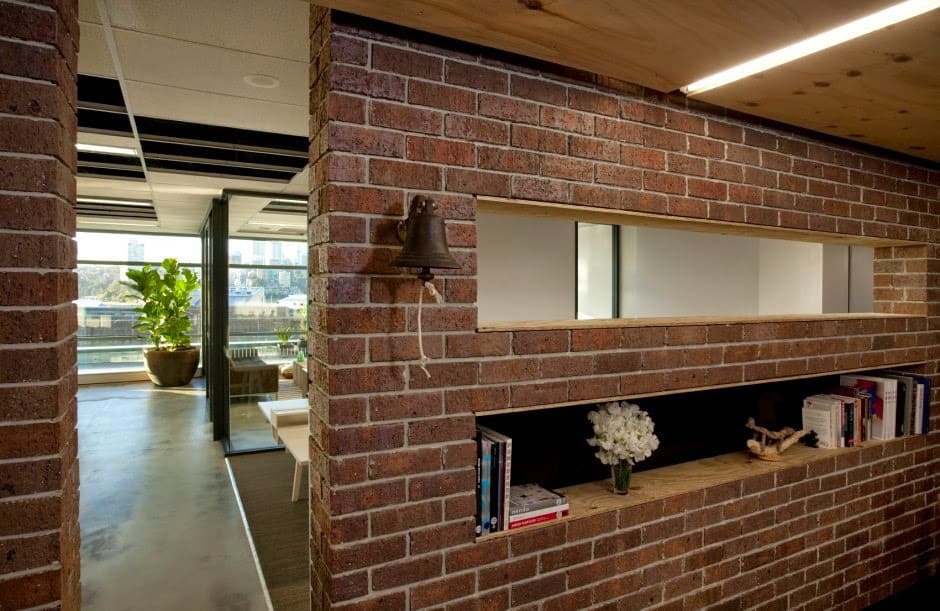

1. Partition Walls Material: Brick

Clay Baricks of Hollow Designs

Brick walls are made up of raw materials that are environmentally friendly as this partition wall material can be recycled and reused. Hard and durable in nature makes brick partition one of the most common choices for partition walls. Brick walls are in general load bearing and an integral part of the main construction. It connects the roof to the floor while separating the space. Often secured with cement or plastered on either side, brick partition walls can very well carry the load and add support to the structure. Brick walls are further divided into three types based on the additional materials used in the construction.

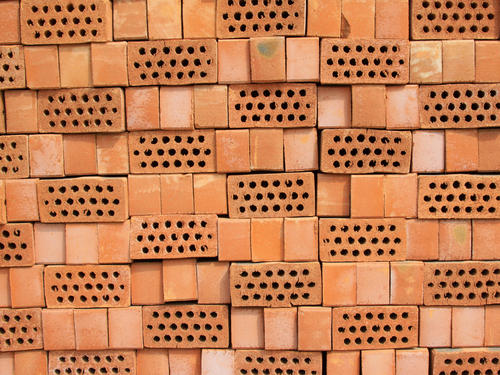

2. Clay Bricks of Hollow Designs

14 Different Types Of Partition Walls Based On Materials 1

Clay blocks of hollow design are used in partition wall type frequently for its features such as fire resistance, ease of construction, durability and budget-friendliness . These bricks made of clay vary in thickness from 5 to 15 cm and come in a fixed dimension of 30x20cm. These provide decent heat and sound insulation and different texture based on the materials used adding aesthetic value to the design.

3. Reinforced Brick Partition Wall Designs

Reinforced Brick Partition Wall Designs

Addition of wire mesh or iron bars on regular intervals after three to four courses, results in reinforced brick partition wall type. This additional element adds greater strength to the partition wall design making it capable of bearing load. It usually has a thickness of 10 cm or half of the brick size. The construction of reinforced brick walls is of low technological advancement yet superior in strength. The thickness of wire mesh used for reinforcement falls between 25mm to 28mm and iron bars of 6mm diameter.

4. Brick Nogging Partition Wall Design

Brick Nogging Partition Wall Design

This design of partition wall is built with a wooden framework supporting the brick structure vertically and horizontally with studs and heads respectively. These additional wooden supports increase the strength and stability of the partition wall. In a brick nogging partition wall type, the studs are spaced at 60cm to 150 cm apart and the heads spaced at a distance of 60 cm to 90cm, with the bricks placed flat within this structure.

To add strength to the structure, the brickworks are usually plastered from both sides using cement in a 1:3 mortar portion. The point where the brick comes in contact with the wooden frame is secured with coal tar for stability and longevity.

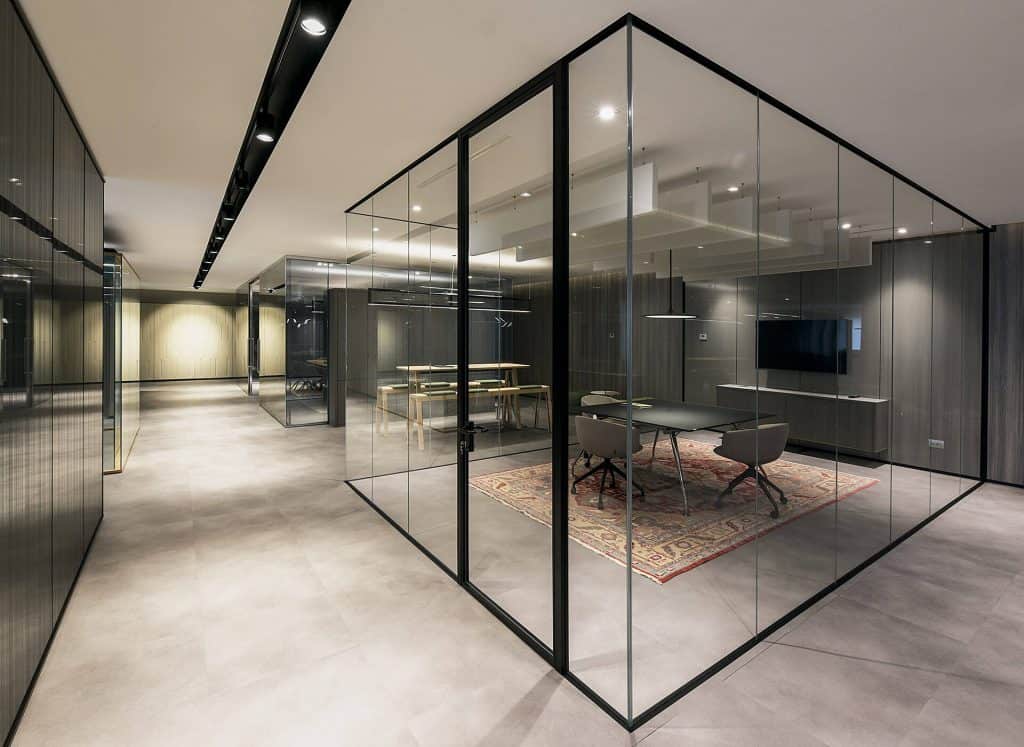

5. Partition Wall Material: Glass

Partition Wall Material - Glass

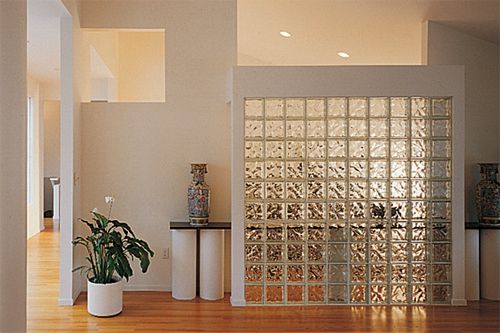

Glass partition wall designs are of two types, one where glass bricks are used and the other where glass sheets are used. In the case of glass bricks, these bricks can be manufactured in the desired dimension, and usually, the thickness comes up to 10cm. These bricks allow natural light to pass through and provide decent level sound and warmth proof.

A glass brick partition wall does allow a decent level of privacy while enhancing the aesthetics of the area. Easy to build and easy to clean and maintain, these choices of walls are also economical. While glass bricks are assembled using cement, glass sheets require a wooden framework for support. Metal straps are also incorporated in the construction to increase the strength of the partition wall design.

6. Partition Wall Material: Metal Lath

Partition Wall Material: Metal Lath

Metal lath partition walls are non-load-bearing partition walls. The partition wall material is carefully chosen according to the weather condition. In case of high humidity or continuous dampness stainless steel is used and for dry weather galvanized steel is used to build the wall. These walls are constructed by placing metal laths on vertical channels known as studs at a distance of 2 to 2.5 cm apart.

The structure is secured using plaster on either side. This helps the structure to insulate heat and sound to an extent. This option of partition walls is highly durable, less space-consuming, sturdy, and resistant to fire. Metal lath partition walls are common in both interior and exterior constructions.

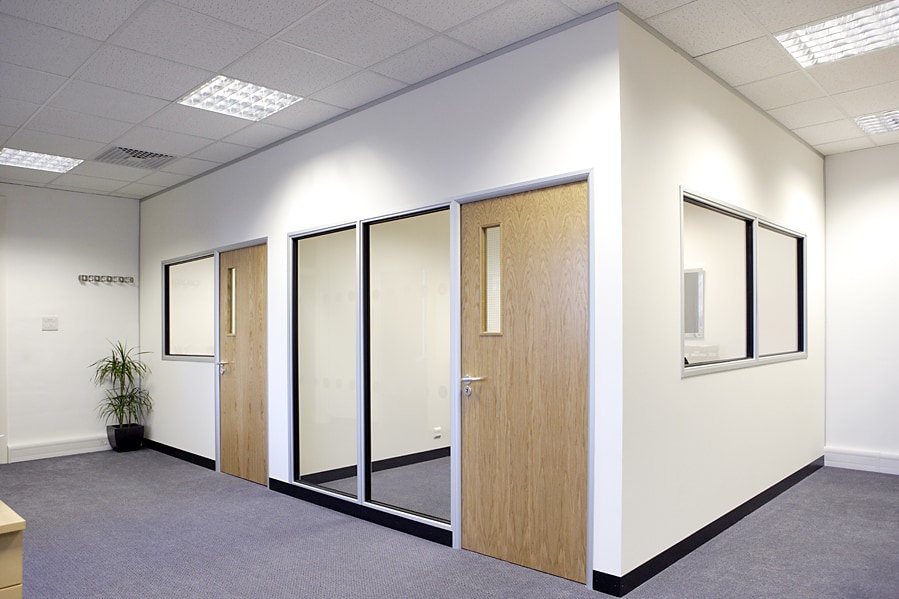

7. Partition Wall Material: Plaster Slab

Partition Wall Material- Plaster Slab

This partition wall material is a hybrid of the burnt form of plaster of Paris or gypsum and wood. This unique combination results in bringing the sturdiness and strength of plaster of Paris but reducing the weight of the material with the addition of fibrous counterparts. The material is molded with the help of an iron or timber framework. These molded slabs usually come in a thickness between 5 cm to 10 cm and a length of 2 meters. While the surface is generally rough, it can be smoothed out.

But maintaining the roughness adds texture and makes the plastering process more efficient and effective. An advantage of plaster slabs as partition walls is that the use of nails, screws, etc., is quite easy making it construction friendly. This partition wall material tends to become stronger over a period as it loses water content. This protects the wall from dents and cracks.

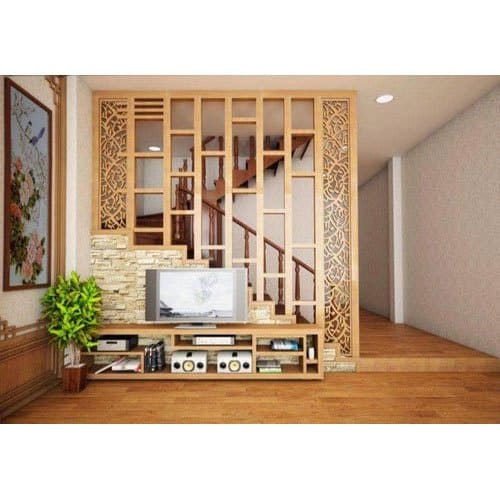

8. Partition Wall Material: Wooden

Partition Wall Material - Wooden

The wooden interior adds more character and aesthetics to any space. Its construction is generally hassle-free and the end result is lightweight. These are a bit high on the maintenance side and should be avoided in place of high humidity and dampness. The wall is constructed by placing wooden logs, which are further plastered to the sidewall and tied down to the floor. Wooden walls do not provide sound and warmth proof. Since wood is a natural material it is more prone to Roden and insects attack to even fungal growth reducing its durability. Wooden partition walls are non-load-bearing walls.

9. Partition Wall Material: Galvanized Sheets or Asbestos Sheets

Partition Wall Material- Galvanized Sheets or Asbestos Sheets

Galvanized sheets and asbestos sheets provide lightweight partition walls designed to provide optimum stability and strength. When constructed properly with good quality raw materials these partition walls can be durable and sturdy. The materials used are also budget-friendly.

These sheets are fixed to each other with the help of motor cement. The whole structure is supported by a metal or wooden framework. Galvanized sheets and asbestos sheet partition walls provide fair fire protection. They are generally constructed in a temporary nature but can be used for the long run also.

10. Partition Wall Material: Timber

Ground to ceiling partition design ideas for living & dining roo

Timber partition walls are constructed using a timber framework. These are non-load-bearing partition walls that require additional support from the foundational structure. Here timber units are arranged in a tight inflexible manner, where the sides are secured using plaster coating. This partition wall provides great scope for customization as per requirement. It also adds to the aesthetic value with its minimal style of structure. It does not provide fire resistance and is often under the threat of insect attack.

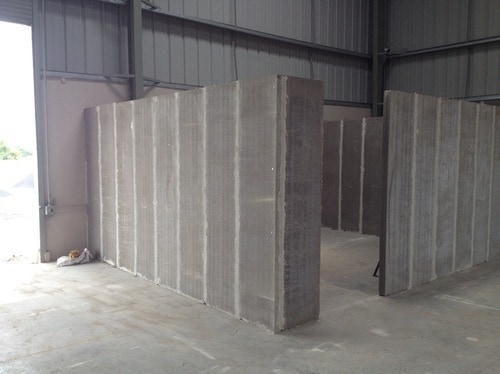

11. Partition Wall Material: Concrete

Partition Wall Material - Concrete



Concrete partition walls are heavy-weight slabs that are of 10 cm thickness. It has steel bars in them that provide strength, stability, and sturdiness. Concrete slabs are usually pre-constructed as per the requirement and brought to the site, or constructed on the site known as in situ construction with the material ratio of 1:2:4. These are general monolithic slabs with both vertical and horizontal support.

These partition walls can be constructed either in a plain manner or using the reinforcement technique for additional strength. The concrete partition wall, though long-lasting, the construction cost is higher when compared to the other options. Concrete partition walls do provide fire resistance.

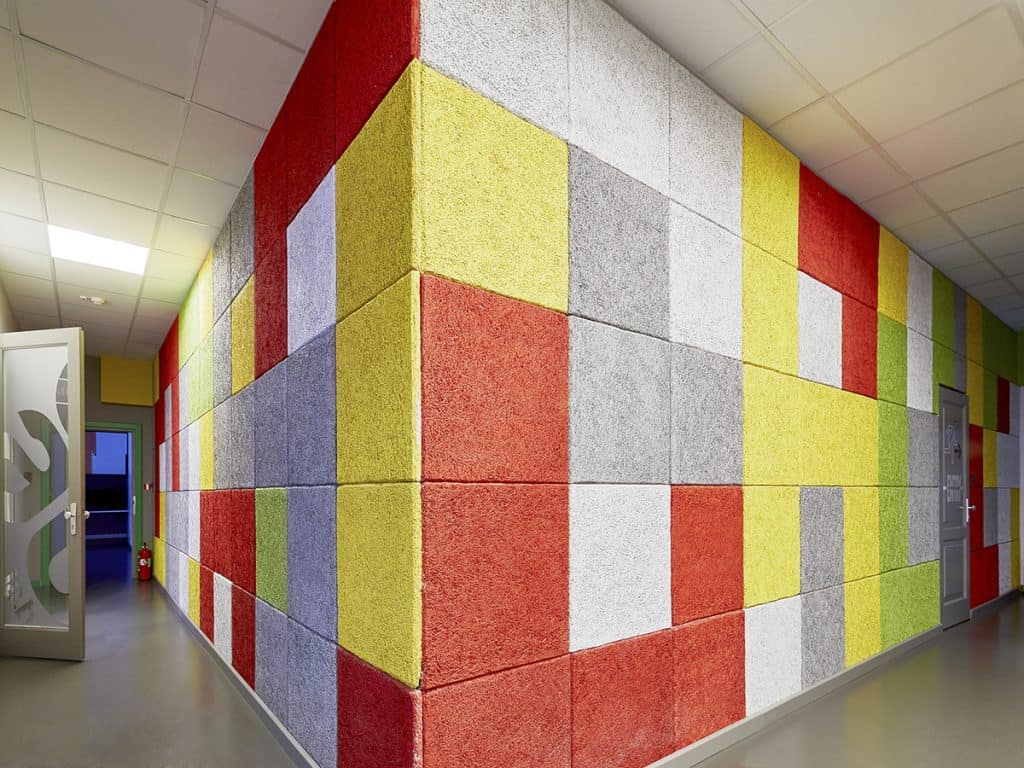

12. Partition Wall Material: Wooden Wool

Partition Wall Material - Wooden Wool

The wooden wool martial wall is made of a mixture of wooden fibers of length, overlaid with an adhesive material such as cement or plastic. The adhesive gives strength and holds the wood fibers together. This structure generally has rough ends. This is a great advantage as it holds the plaster well adding more strength to the structure.

13. Partition Wall Material: Straw Board

Partition Wall Material - Straw Board

Straw board partition walls are constructed using compressed papers or hardboard covered by thick layers of straws. This type of partition wall is highly used as a movable partition wall as it is easy to construct. It provides good insulation against sound and heat.

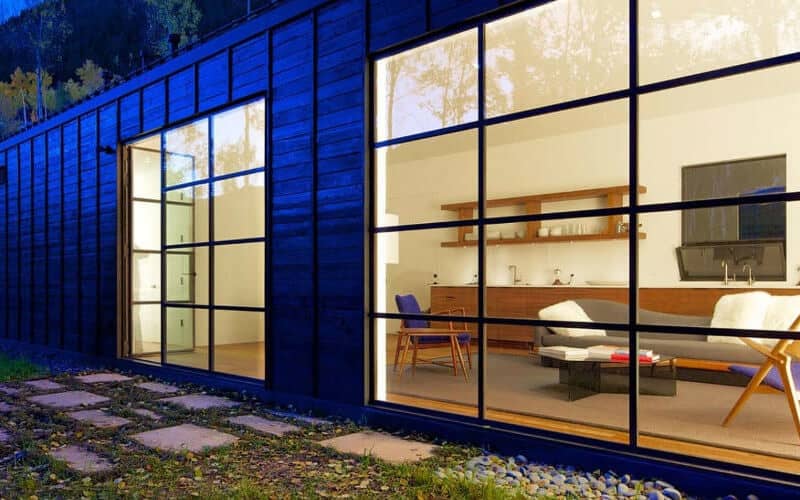

14. Double Glazed Windows

Double Glazed Windows

The double glazed window partition wall is constructed using two panels placed at a distance of 5cm or more in order to trap air between the panels. This structure provides high-quality soundproofing as the air is trapped between the panels.

Conclusion:

Partition walls are a great choice to create separation and privacy within a space. With the wide variety of materials available in the market, you have plenty of options that fit right for your budget and requirement. The use of good quality raw materials and proper post-construction care will help you maintain the partition walls better.

Different Types Of Partition Walls FAQs :

1. What is the utility of a partition wall ?

A partition wall, made of sturdy materials like brick, glass, and metal sheets is used to create a separation of space. It can either carry the load and provide support or not carry any load and require additional support, based on the material and nature of construction.

2. What are the types of partition walls ?

Partition walls can be classified into two based on their load-bearing capacity. A) Load-bearing partition walls: This can bear the load on the construction and helps in distributing the load from the roof to the floor. B) Non- load-bearing partition walls: These cannot bear the load of the construction and require additional support for stability.

3. What is the thickness of a partition wall ?

The thickness of a partition wall depends on the material used for the construction. Glass walls are made of 10 cm thickness whereas other materials vary from 5cm to 15cm in thickness such as concrete, brick, and plaster slab.

4. What is the major difference between a partition and a wall ?

A partition is a vertical structure used to create separation of space. It does not provide structural support to the main structure. Whereas a wall is an integral part of the main structure bearing the load of the roof and providing support to the construction.
