Different Types of Electrical Switches And Fixtures

different types of electrical switches

With a lot of different types of electrical switches on the market, it’s critical to understand what distinguishes one switch from another. To put it another way, each switch is distinct in characteristic, and by learning how it works, we can make a sensible decision based on our needs. Some of the electrical switches have integrated functions, like the indicators, along with a lot of different types of electrical switches on the market, it’s critical to understand what distinguishes one switch from another.

 To put it another way, each switch is distinct in characteristic, and by learning how it works, we can make a sensible decision based on our needs. Some of the electrical switches have integrated functions, like the indicators, along with the fundamental process of switching on & off. We’ve compiled a list of various types of electrical switches to help you choose the right one for your environment.

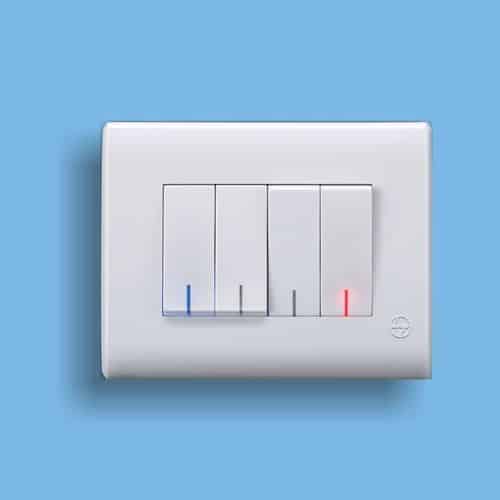

Different Types of Switches

Different Types of Electrical Switches And Fixtures 1
  1. Single-Pole Electrical Switches: A single-pole electrical switch is a switch that has only one pole Single-pole Electrical switches, Toggle switches is another name for them, are the most preferred types of switch. With a single-pole switch, a single fixture can be controlled from one location. These are the simplest switches to use, install, & replace.
  2.  Double-pole switches: It is used to control two lights with no need of installing a separate box. The switch works just the same as 2 single-pole electric switches operated by one button mechanically. The switches are fairly easy to use, install, & replace.
  3. Three-Way Switches: These switches allow you to control 1 fixture from 2 different locations. To give quick accessibility to the fixtures, the switches are typically used in big rooms, stairwells, and corridors. Setting up the switches is not easy, but they are easy to use once they’re up and running.
  4. Four-way switches: It’s a gadget that lets you operate 1 fixture from 3 different places. These switches can generally be found in long corridors or locations where light fixtures are a must. Installing the switches is a bit of a challenge.
  5. Multi-Location Electric Switches: This switch helps in controlling 1 fixture from multiple locations. Electrical switches like this are most typically seen in large areas like stairwells and corridors, where having many controls increases safety and is also convenient. Installing the switches is a bit of a challenge.
  6. Bell Switch: A bell switch helps to regulate doorbells in the homes & workplaces. In the case that it is entirely dark, the bell switch has an indicator which helps to assess the power supply and also provides rapid access to an electrical switch. The switches are very easy to set up and utilize.

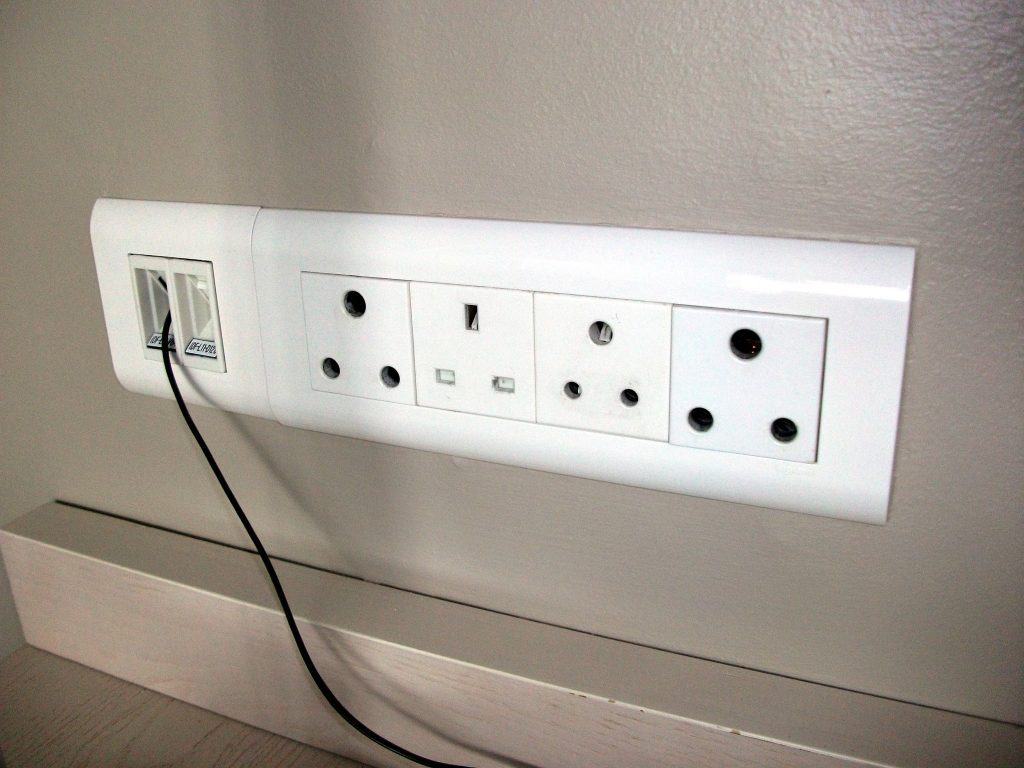

Sockets

Different Types of Electrical Switches And Fixtures 2

Electrical socket:  An electrical socket is used to connect electrical devices to a building’s primary power source. The current and voltage ratings, as well as the form, size, and kind of connections, may vary. These are typically available in 2, 3, and 5-pin configurations, with a current rating of 6A to 25A.

Module of Support

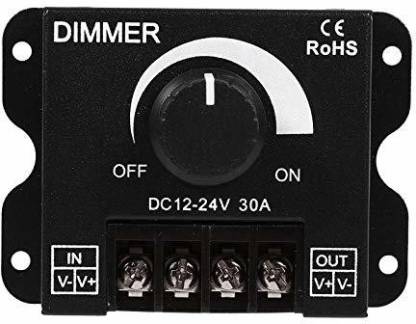

Dimmer:

Dimmer

Dimmer is a device that allows you to control the amount of light in any particular area. Dimmers are useful for lowering the light and producing a cozier ambiance. These come in single-pole, 3-way, and multi-location configurations. Dimmers are simple to use and may help you save money by conserving energy and increasing the life of your bulbs.

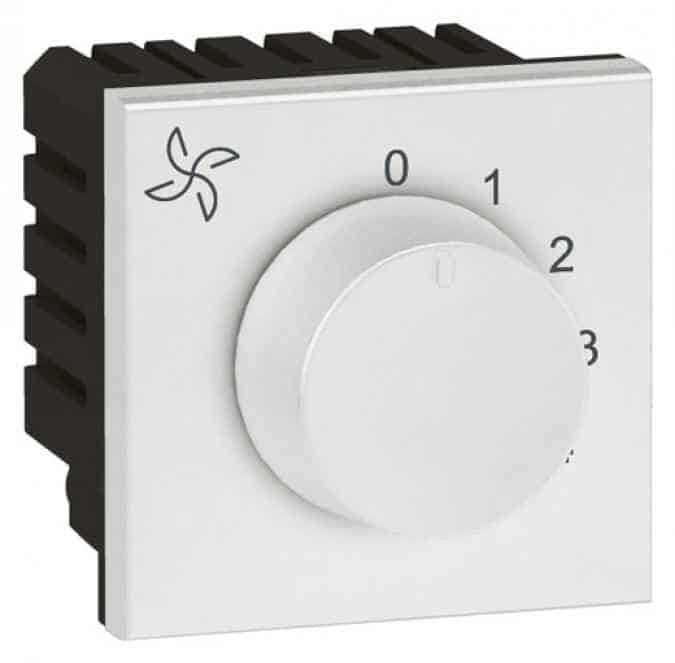

Fan Regulator:

Fan Regulator

A fan regulator helps you to adjust the fan speed based on your needs. Fan regulators typically come in 4-step & 5-step speed settings. These are simple to use and also to install.

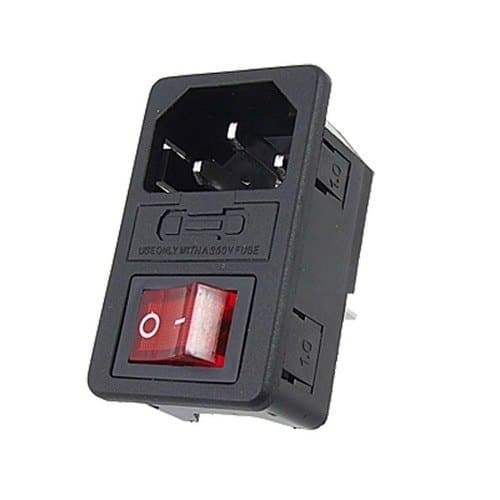

Power Unit:

Power Unit

Power unit essentially consists of a socketand a switch. It’s most commonly utilized to connect heavy-load equipment to the building’s power source. These are available in 3 different current ratings: 20A, 25A, & 32A. Setting up a Power unit is very simple.

Module for Communication

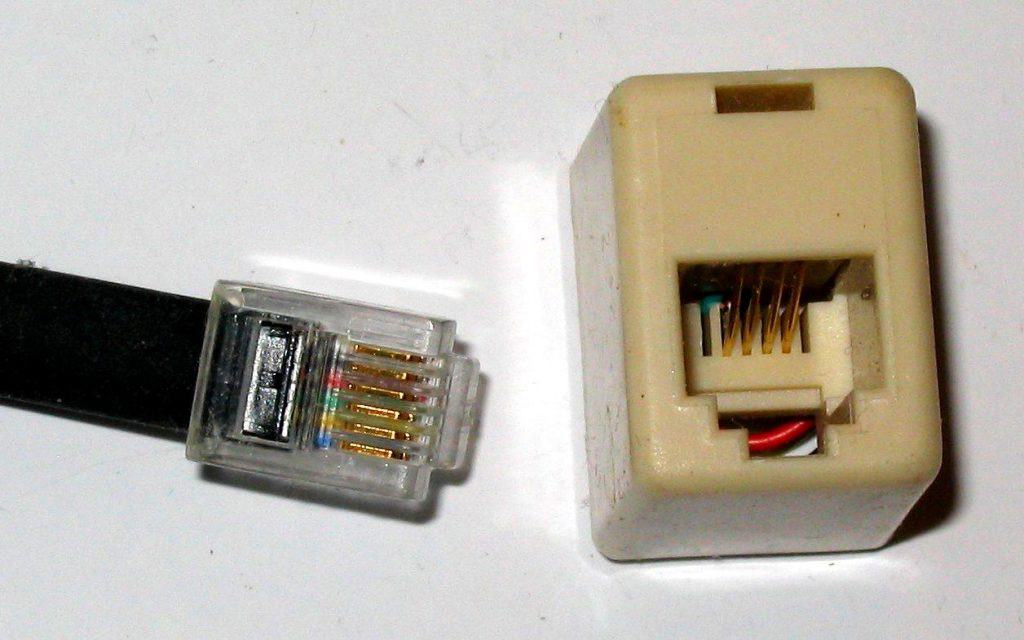

RJ11 Jack or Telephone Socket:

RJ11 Jack or Telephone Socket

A telephone socket, which is also known as Registered Jack-11 or RJ11, is a device which allows a phone to connect to a building’s main telecommunication line. These connectors are tricky to install, but they’re simple to use.

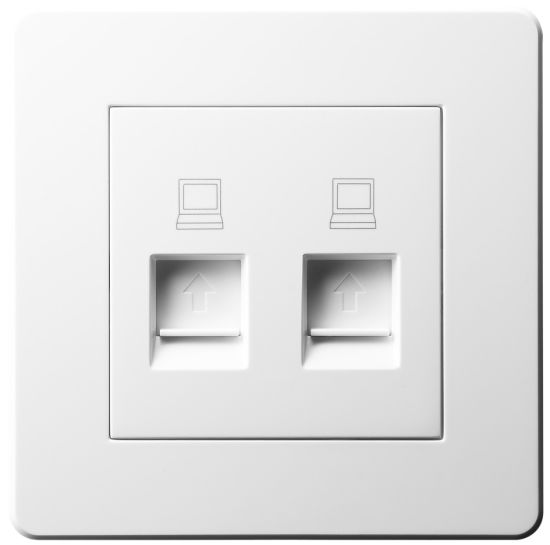

RJ45 Jack or Data Socket:

RJ45 Jack or Data Socket

Data sockets are commonly known as RJ45 jack. It is a networking connector that connects computers and other elements such as internet cable. The data connections are difficult to set up but simple to use.

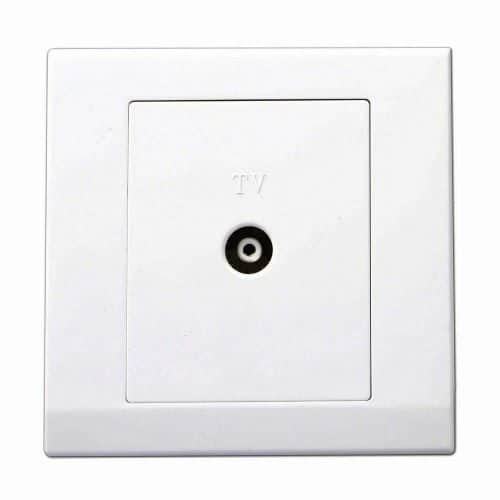

TV Sockets :

TV Sockets

TV sockets, like telephone & data sockets, allow a TV set to be connected to a cable network provider line in a house via aerial fly lead. These sockets, like the others, require some work to set up but are simple to use.

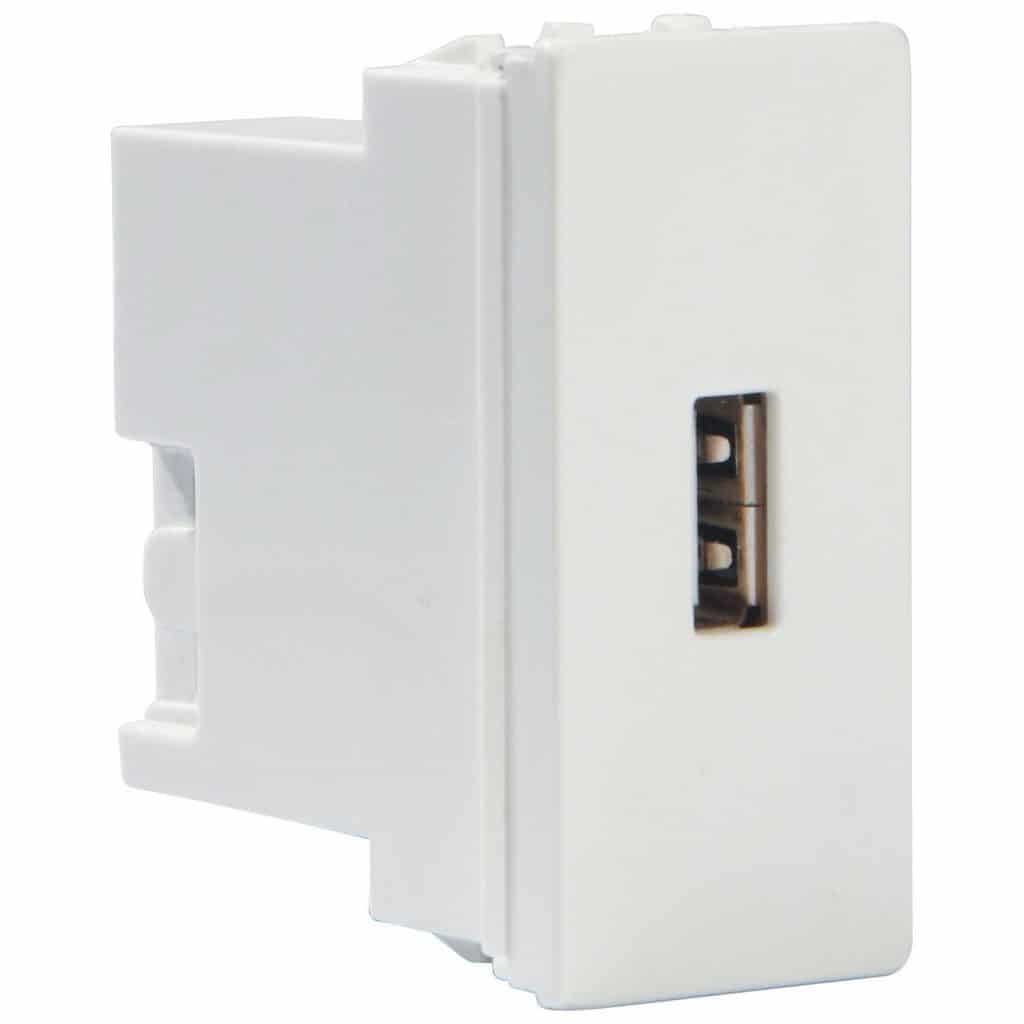

USB Charger or Socket:

USB Charger or Socket

Because USB ports are so widely used; the sockets are specialized to charge USB-enabled devices. By eliminating the need for adapters, using USB sockets is an excellent method to make the device charging simple. These are simple to set up and use.

Final Thought:

After learning about the many types of switches, you should be able to distinguish between the various switches. Many well-known electrical switches manufacturer offers a stylish range of sockets, switches, communication modules, and support modules to fulfill all of your switch needs. The modular switches are made of high-quality, flame-resistant material with added safety measures.

Different Types of Electrical Switches FAQs

1. Which type of switch is used in the circuit?

Most circuits have an on/off switch in the most basic form. Many circuits have switches that affect how the circuit functions or activate other functionalities in addition to the on/off switch.

2. What type of light switch is best?

Rocker switches are utilized in expensive new homes, whereas traditional switches are employed in low-cost houses. For new houses and current renovations, rocker switches are often thought to be more appealing.

3. How many types of a switch are there?

Mechanical and electrical switches are the two most common types of switches. The operation of mechanical switches necessitates physical or human contact with the switch. Electrical switches do not require physical or human touch to operate, and they are capable of doing so.

4. What are the 3 types of switches used in residential electrical?

Although you may have a switch that controls electrical equipment, most switches are used to regulate lights in your house. Toggle, rocker, slider, and push-button switches are available, however, the form you pick has no bearing on the switch's actual function and wiring.

5. What are different light switches called?

Toggle, rocker, slider, and push-button switches are some of the most prevalent types of switches. The switch function and electrical wiring are largely unaffected by the appearance. Switches are commonly used to turn lights on and off, but they may also be used to turn electrical current on and off for practically any electrical equipment.
